T-LOGO

Advanced Graphic Generator SD/HD

T-Logo is an advanced and efficient system for composing and display your logos, breaking news, weather forecast, coming next, crawls, rolls, tickers and RSS.
Modern TV channels require more and more graphics enrichment. T-Logo has been designed to satisfy all the needs for dynamic Tv station, thanks to an intuitive GUI and a powerful graphic engine with embedded template editor.

Install & Play

T-Logo is very simple to use. The user interface of the main playout section is displayed as a video mixer-like control with preview & program. Page compositing is extremely user friendly GUI and allows to add multiple object like texts, clocks, crawls, rolls and media (audio, bitmaps, video and animations) and customize all the aspect in detail.

High Quality

T-Logo delivers High quality antialiasing text, smooth interlaced crawls, tickers and rolls. All layers are managed @ 32 bits allowing precise alpha channel and transparency compositing. Text and media can be updated on the fly for production.

Take it easy

T-Logo can imports data automatically from TXT, CSV, RSS feeds and also XLS files, as soon as the data is updated, it goes straight on air. The fonts, colors and alignment specified in the XLS files are respected. T-Logo also supports the formulas and database connections specified in the XLS files, allowing to create custom applications with macros and VBA scripting, Perfect companion for sport and polling transmission.

Multi-Object & multi-format

T-Logo CG editor is able to manage a vast variety of object and codecs to enrich your graphic template like:

Video file animations in bitmap sequences, TGA sequences, GIF, quicktime ANIM and Prores 4444, Video files import in DV, HDV, DVCPRO, MJPEG, MPEG-2, TS, MPG, VOB, H.264, H.265, MP4, QuickTime (with alpha channel), PRORES, DNxHD, AVI, WMV, ASF, MXF, XDCAM, IMX, GXF, LXF, FLV, MKV, WebM, JPEG2000, DPX.

T-Logo DVE

T-Logo DVE is a specific version that includes all the powerful functionalities of the T-Logo and the DVE capabilities includes Squeezeback, PIP and others.

Versatile

T-Logo is the most advanced and affordable logo generation and channel branding product on the market. The solution is ideal to display graphical contents, such as text, logos and animations, crawls, tickers and rolls with dynamic contents/metadata retrieved from external data sources, like RSS, txt, XLS files and more. The broadcast quality and easy of use allows T-Logo to be used also for live production in talk shows, sports and entertainment.

Interoperability

T-Logo can receive commands from external devices for hot keys functions (MOXA devices, RS232, custom Keyboards) to load and play multiple pages. The CG composer editor gives a wide range of possibilities to set position, transparency, static effects (blur, glow, shadow, etc.) and in & out transition effects for each object. The powerful T-Logo graphic engine allows switching from different templates with smooth transitions, the engine is also capable to recognizing same elements (from the different templates) and adding just new ones.

Multi-channel

T-Logo can provide in the same server machine up-to 4 channels with Fill & Key capabilities. In case of T-Logo DVE version it is possible only 1 channel per server. The channels can be SDI and NDI simultaneously.

Board supported

T-Logo DVE supports for SDI connection various capture card such as : Blackmagic Design, AJA, Deltacast, Bluefish.

Key Features

  • HD/SD static and animated graphics and logos
  • Antialiasing text with gradients, borders and shadows
  • Clock, countup/down, date, crawl, ticker and roll
  • Supports TGA, BMP, PNG, TIF, JPG bitmap sequences
  • Smooth IN/OUT transition: fade, move, zoom
  • 32 Bit images processing with alpha and transparencies
  • GPI supports
  • Effects: shadow, blur, motion blur, smooth edge (deflicker)
  • REST APIs for 3rd party remote control
  • Internal key mode (video IN to video OUT) or external key mode (Fill & Key outputs)
  • Social media integration (sold separately)
  • Built-in scheduler with start/end time and repetition
  • Built-in playlist with loop on separate page/layer
  • UNICODE texts & double byte language support
  • Right to left language support
  • Automatic text size adaptation to areas
  • TTF fonts support
  • Fade in/out, move left/right/top/bottom, squeeze X/Y/XY transitions
  • Shadows with color, offset and blur which follow animation alpha
  • Automatic upscale/downscale of media as background
  • Text, Crawl, roll and ticker datasource from text, CSV, RSS and excel files
  • Realtime update of graphics on datasource change
  • Object layering with priority management
  • Free Page CGComposer app for offline template creation
Ableton lunchPad integration
JLCooper integration
As run log
Master & Slave
Audio out on SDI & NDI
GPI interface
Preview over VGA and SDI & NDI
Mixer like GUI
API rest interface
XLS integration
Analog & digital clock
Unicode support

T-Logo scenario

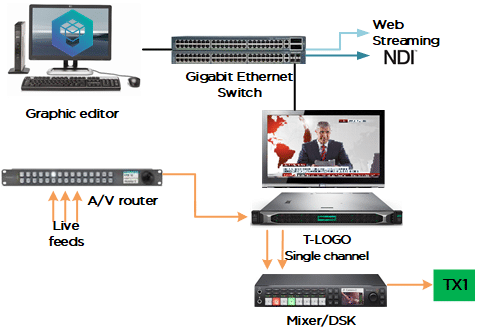

Single Channel T-Logo Fill & Key

Single Channel T-Logo layout with Fill & key output over SDI & NDI.

It is also available web streaming output.

The CG editor can be installed in an external PC.

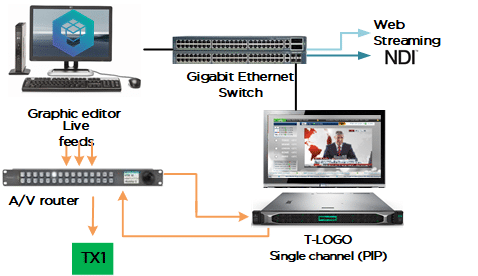

T-Logo DVE

Single Channel T-Logo layout with internal Key output over SDI & NDI.

It is also available web streaming output.

DVE & Picture in picture.

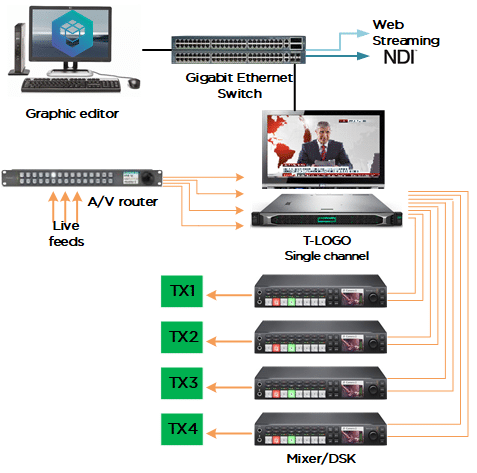

Multi Channel T-Logo Fill & Key

Multi Channel T-Logo layout with fill & key output over SDI & NDI.

It is also available web streaming output.

4 independent channels with Fill & Key capabilities
