Panorama+
All-in-one video gateway for any format, any protocol, any resolution
Panorama+ is a powerful, flexible, software-based video gateway that converts any video source into any desired output format. It is the piece that makes the rest of the plant agree with itself — monitoring streams from satellites, live feeds, playout devices, IP streams and other local or remote sources, and streaming concurrently to multiple destinations with or without format conversion.
Every protocol talks to every other
SDI, NDI, ST 2110, ST 2022-6 and 2022-7, SRT, WebRTC, UDP, RTMP, MPEG-DASH, HLS, RTSP and IIS Smooth — converted in software, in real time, in both directions.
Consistent branding on every feed
Graphics inserted per input channel, and different logos per destination on the simulcast output. Up- and down-scaling from SD to 4K applies wherever it is needed.
One failure is not a system failure
A service-oriented architecture runs an independent process per panel with an automated watchdog that restarts processes in isolation. Scaling from a single channel to hundreds does not change that.
Capabilities
What Panorama+ actually does
The virtual router at the centre of the plant
Panorama+ is embedded in Dynamo, where it provides the input and output flexibility that makes a software playout chain possible. It receives any kind of input and transforms it into any kind of output, and it can also control external video routers over IP or serial.
The simulcast output plays out to SDI, NDI, SMPTE ST 2110, ST 2022-6 and 2022-7, and streaming to CDN at the same time — with a different graphic logo per destination, and an AD insertion module for the distribution channels where the rights differ.
Conversion that does not need a separate rack
Up and down video cross-conversion, frame-rate conversion, aspect-ratio conversion, colour-space conversion, interlaced-to-progressive conversion and audio shuffling — all of it in software, per channel, at the point the signal already passes through.
Monitoring that produces evidence

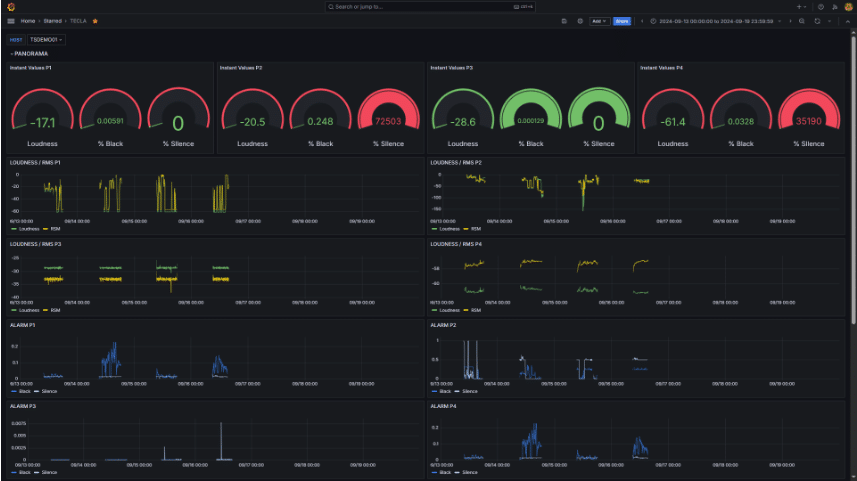

A built-in dashboard gives real-time visualisation and monitoring of every channel, with VU meters and audio-level adjustment, loudness measurement and normalisation, and a full-featured compliance recorder for long-term storage and regulatory adherence.
The system that carries the signal is also the system that documents it, which removes a whole class of integration from a compliance project.
Local, remote, and the platforms in between
Direct support for YouTube, Twitch and Facebook on the distribution side, and Microsoft Teams and Zoom on the contribution side. A loop clip player is embedded for fallback and continuity.
Certified for AWS, Azure, Oracle and Tata cloud, with CPU and GPU optimisation, and a full REST API set for external control.
In the interface
See it working
Panorama+ carries and documents the signal at the same time — the monitoring layer is part of the gateway, not a separate product.
Feature list
Everything Panorama+ ships with
Layout
- From a single channel up to 16 channels per server
- Stackable for scale-up or scale-out
- Loop clip player embedded
- VU meters and audio level adjustment
- Native integration with Dynamo, Ingrid Capture and Ingrid Studio
Conversion
- Up and down video cross-conversion
- Frame-rate conversion
- Aspect-ratio conversion
- Colour-space conversion
- Interlaced and progressive conversion
- Audio shuffling
I/O and format support
- Single, dual and quad link, depending on the board
- Hardware bypass in-out on specific boards
- SD, HD and 4K
- ST 2110, ST 2022-6, ST 2022-7 with dedicated boards
- SRT, UDP, WebRTC, HLS, RTMP, RTSP, MPEG-DASH, IIS Smooth
- YouTube, Twitch and Facebook support
- NDI support, with Teams and Zoom integration
Managing and monitoring
- Loudness measurement and normalisation
- Full REST API set for external control
- CPU and GPU optimisation
- AWS, Azure, Tata and Oracle cloud certified
- Each panel an independent process with its own watchdog
- Plug-in for Dynamo and Ingrid
- Full-featured compliance recorder
Specification
The numbers, in full
Need a signed-off configuration for a tender? Ask and we will send the full technical annex with the exact build for your channel count.
Request the technical annex| Capacity | |
|---|---|
| Channels | 1 to 16 channels per server; stackable architecture; scales to hundreds |
| Resolution | SD, HD and 4K, with up and down scaling |
| IP and streaming | |
| IP video | SMPTE ST 2110, ST 2022-6, ST 2022-7 (with dedicated boards) |
| Streaming in and out | SRT, UDP, RTMP, HLS, RTSP, MPEG-DASH, IIS Smooth, WebRTC — multiple frame rates and resolutions |
| Platforms | YouTube, Twitch, Facebook, Microsoft Teams, Zoom |
| SDI | |
| Link | Single, dual and quad link, depending on the board |
| Bypass | Hardware bypass in-out on specific boards |
| Processing | |
| Video | Cross-conversion, frame rate, aspect ratio, colour space, interlaced ↔ progressive |
| Audio | Shuffling, VU metering, level adjustment, loudness measurement and normalisation |
| Graphics | Per-channel branding and graphics insertion; per-destination logos on simulcast |
| Platform | |
| Architecture | Service-oriented; one independent process per panel with automated watchdog |
| Optimisation | CPU and GPU |
| Cloud | AWS, Azure, Oracle and Tata certified |
| Control | Full REST API |
| Recording | Integrated full-featured compliance recorder |
Deployment
On-premise
Runs on standard enterprise servers in your own plant. No proprietary hardware, no vendor-locked appliance, no forklift upgrade.
Hybrid
Keep the signal path local and move the elastic parts — transcoding, archive, disaster recovery — to the cloud, one workflow at a time.
Cloud
The same build, deployed on the major clouds. Identical interfaces, identical behaviour, identical support contract.
Integrations
It has to work with what you already run
Tecla products
- Dynamo (embedded)
- Ingrid Capture
- Ingrid Studio
- Synaxis
Distribution
- YouTube
- Twitch
- CDN via SRT / RTMP / HLS
Contribution
- Microsoft Teams
- Zoom
- Satellite and remote feeds
Cloud
- AWS
- Azure
- Oracle
- Tata Communications
Typical use cases — IP gateway and format conversion · Virtual routing inside a software playout chain · Multiviewer and channel monitoring · Compliance recording · Contribution from remote and cloud sources
Continue
Works well alongside
See Panorama+ on your own material
We run demos with your formats, your protocols and your constraints — not a canned dataset.
